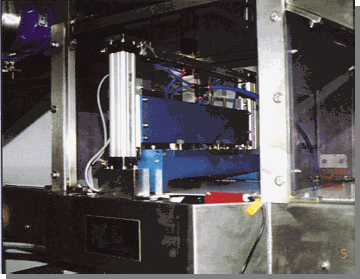

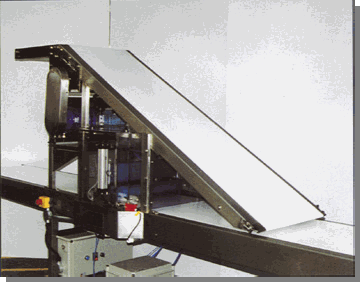

Perrett & Kane - Shape Cutting Machine

Features Include:

  • Cutter designed to run in conjunction with P&K 3 Roll Sheeter.
  • Length 4mtrs, width 800mm.
  • Working height 900mm.
  • Self syncronising cutting action with belt speed.
  • Cutting boards :- 316 St/St.
  • Blades set in HD 500 polyetholine.
  • Air ejection of shapes.
  • Max size of any one shape 420mm x 200mm.
  • Design of cutter allows for indent patterns for piping etc.
  • Variable speed top and bottom conveyors.
  • Cutters also cut beefburger type products.
  • Finished sponge shapes for trifle pots etc.

Features Include:
  • TScrap return conveyor.
  • Quick change cutters.
  • Box action cutting movement.
  • Conveyor fitted with quick release belt tension plus scraper and catch tray.
