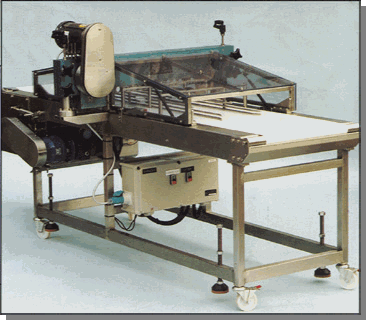

Perrett & Kane - Multi-Blade Horizontal Cutter

Specifications:

  • Product Range:- Cake, sponge, fruit cake etc.
  • Thickness:- Up to a max of 4 blades/ cassettes max cutting area 18" linear horizontal cutting mavement.
  • Drives:- Robust drive via 16mm stroke crank.
  • Hardened linear shafts fitted with pre loaded linear bearings.


Features Include:

  • 0.37kw DC drive.
  • Variable speed drive 0-1500 strokes/min.
  • Up to 500 wide conveyor belt fitted with quick tension belt release scraper and scratch tray.
  • Beam lifting handles.
  • Guards fitted with gas struts.
  • Guard length 700mm to allow 100mm high product.
  • Adjustable guards up to a max 460mm (18").
  • Electrics incorporate conveyor not to run unless cutter is running.
  • Compact design max width 1mtr, length 2.5 mtrs.

Features Include:
  • Two screw fixing.
  • Individual blade tension.

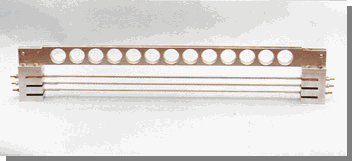

  • Unique quick change multi-blade cassette.
Features Include:
  • Solid box section guards.
  • Gas Struts.
  • Fully guarded and fitted with ferrocode safety switches.

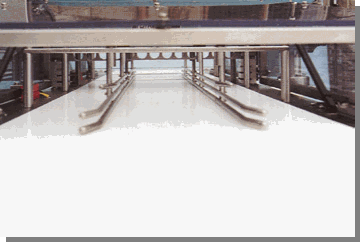

  • Fully adjustable guides max 460 (18").
  • Cassettes pre-set for thickness, no need to adjust beam height.
